We at Industrial Valves have been working firmly to develop high-quality Valves and Fittings for important services in Oil, Gas, Petro-Chemicals, Fertilisers, Power Generation, and a variety of other industrial applications. During this time, we have built numerous strong connections with our clients and vendors, who attest to our exceptional quality and reasonable rates.

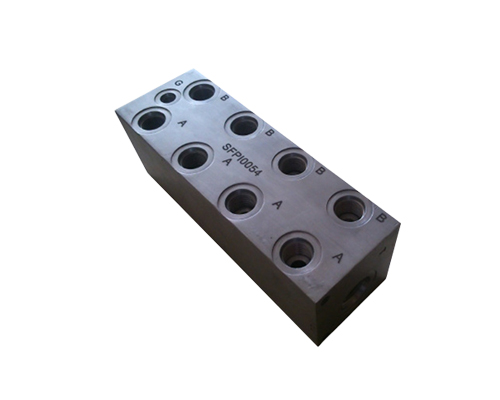

A hydraulic manifold is a component that distributes hydraulic oil throughout a circuit. The flow of pressurised oil is controlled by hydraulic valves positioned within the manifold and routed to a work device, such as a hydraulic motor or cylinder, via hoses.
We are a significant manufacturer of various valve manifolds. Engineered to specialist designs for low, medium, and high-pressure applications.
We could develop a range of models to satisfy critical process applications based on the demands of the individual customer..

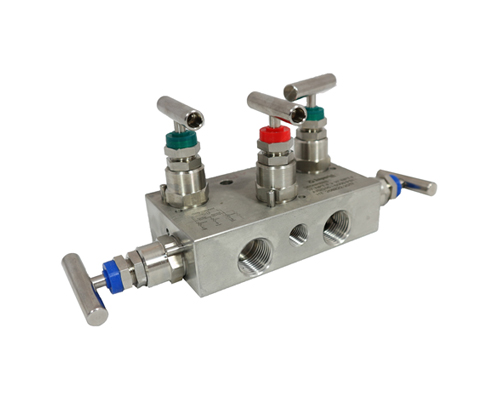

Types of Manifold Valves
We offer these products at competitive prices and deliver them within the time range specified.
Material:
“Manufactured from forged Stainless Steel – ASTM A 479, ASTM A182 F304, ASTM A182 F316, ASTM A182 F304, ASTM A182 F304L, Carbon Steel – ASTM A 105, Monel, Inconel, Hastelloy, Titanium, other on request. Material with NACE compliance is available.
The gland sealing arrangements used in General Manifolds vary with the temperature requirement. The most common is PTFE for temperature upto 180 Deg C however for temperature above 180 Deg C to 270 Deg C graphitized asbestos is a common gland seal. Beyond 270 Deg C and upto 540 Deg C, graphoil can be offered.”
Test / Certificates :
Certificate of conformance, Test certificate, Material test certificates, 3.1 MTC, 3.2 MTC, PMI, NACE-MR-01-75 & NACE-MR-0103, Hydrotest, etc. available.

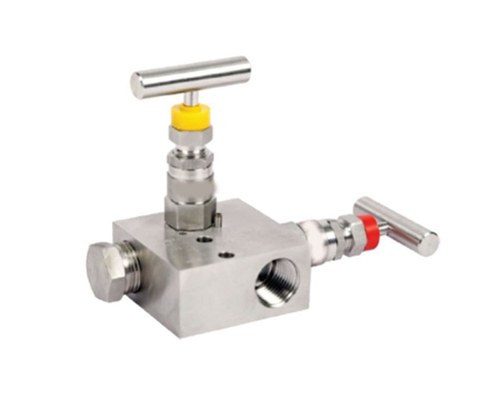

A 2-way manifold valve or 2-valve manifold is designed in a single block with a combination of an isolation valve and a calibration/vent (bleed) valve. They have a male or female screwed inlet and outlet ports.
A 3-valve manifold or 3-way valve manifold consists of two block valves and one equalizing valve. Differential pressure transmitters are typical examples that use 3-way manifold valves. During normal operation, the block valves are open and the equalizing valve is closed.

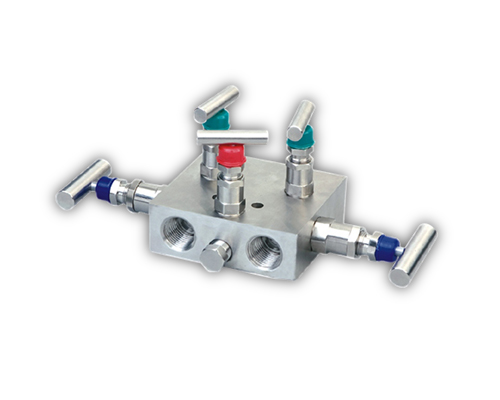

The five valve manifolds are rated for pressures as high as 6000 PSI at 2000 F or 4000 PSI at 5000 F with PTFE packing. Further, for a higher temperature Grafoil Packing is used.

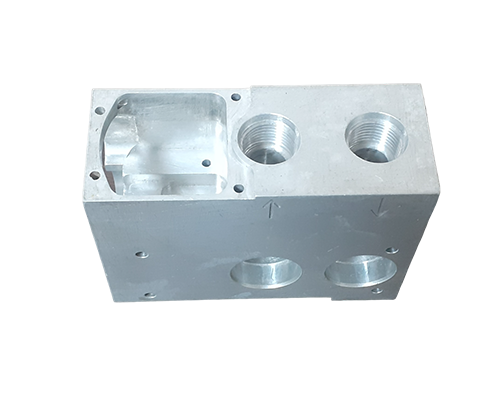

We are the esteemed manufacturers and suppliers of Manifold Blocks. These manifold blocks are manufactured using premium quality raw material with customized pressure and specification options. These manifold blocks generally consist of aluminium and stainless steel to ensure corrosion resistance and a longer operational life.
These blocks have multiple industrial applications and are thus manufactured in different sizes and designs. We are flexible enough to alter the specifications according to our client’s needs. Our products stand out for their high performance and durable design. We make these blocks available to you at very competitive prices.
